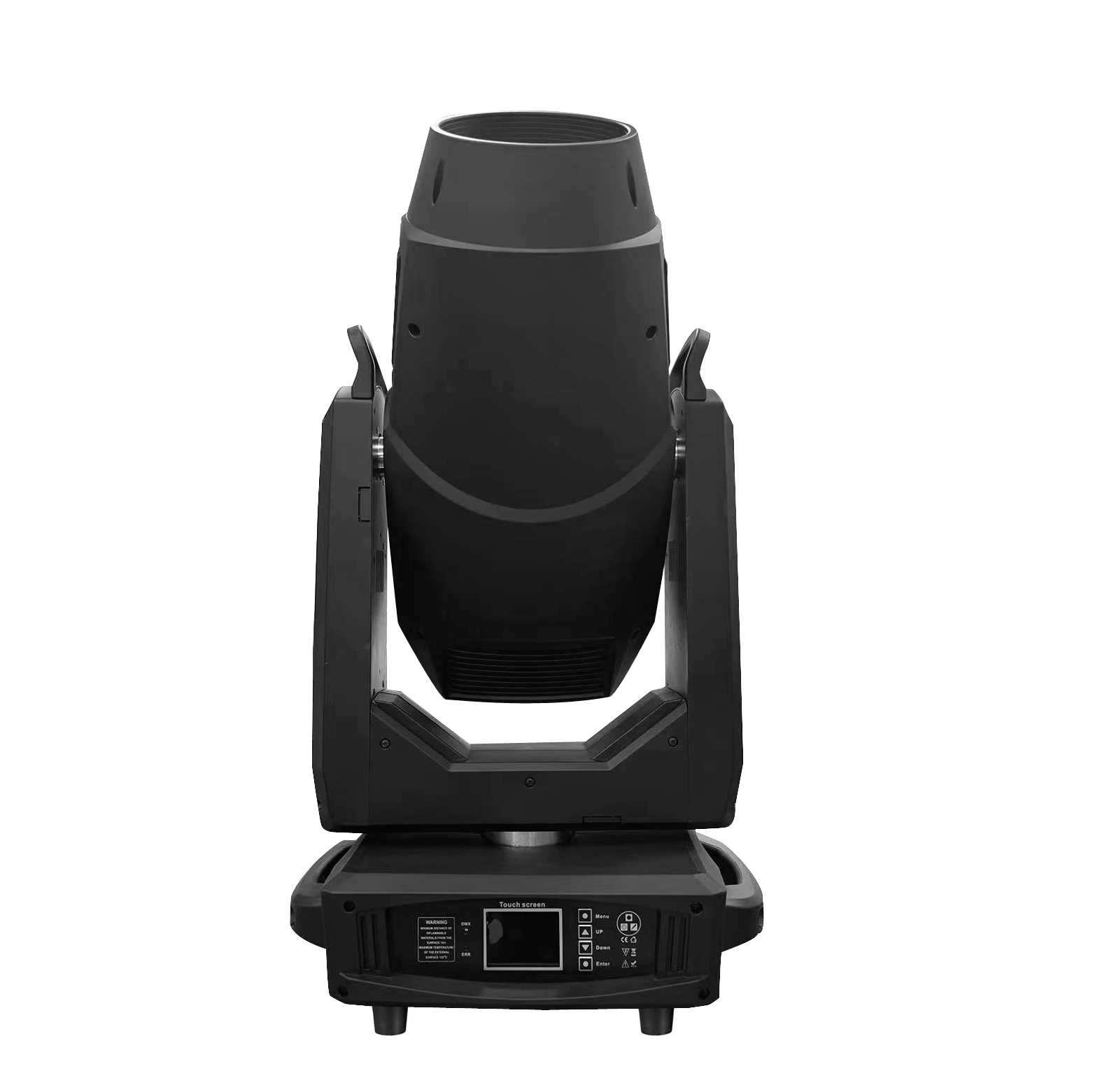

LED Profile Light
Parameter
Size
Detail
Effect light
Projection
Video
Application
Input voltage: AC100-240V, 50/60Hz
Rated power: 900W
Light source: 700W LED module
LED lifespan: 20000 hours
Color temperature: 6800K
Color rendering index: Standard mode Ra>75, high rendering mode Ra>90
Luminous flux: 24000LM
Power interface: 16A power plug
Signal interface: Three core XLR socket
Control mode: DMX512, RDM
Channel mode: 36 international standard DMX512 channels
Display system: 2.5-inch touch LCD display screen, displayed in both Chinese and English, with 180 degree rotation
Fixed colors: 7 colors+white light
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO2800-6000 K linear adjustment
Prism disk: rotating 3 prisms
Effect Plate: Superb simulation of dynamic effects such as flickering flames and flowing water
Fixed pattern: 9 fixed pattern pieces+white circles
Rotating pattern: 7 pattern pieces (pluggable)+white circles
Cutting system: 8 independent cutting pieces, each piece can be individually turned off and rotated 90 °
Atomization system: 0-100% linear atomization
Optical aperture: 140mm
Aperture system: 5%~100% smooth adjustment
Scaling system: 5 °~48 ° linear focus
Dimming system: 0-100% linear adjustment
Stroboscopic system: The maximum frequency can reach 25Hz, and random and pulse stroboscopic horizontal scanning can be selected: 540 ° (16 bit precision scanning)
Vertical scanning: 270 ° (16 bit precision scanning)
Protection level: IP20
Working environment: 0-45 ℃
Product size: 510L * 345W * 800H (mm)
Net weight of product: 43kgs
Product gross weight: 45kgs
Product appearance: Flame retardant, high temperature resistant, foldable integrated light hook
